Details
Without light

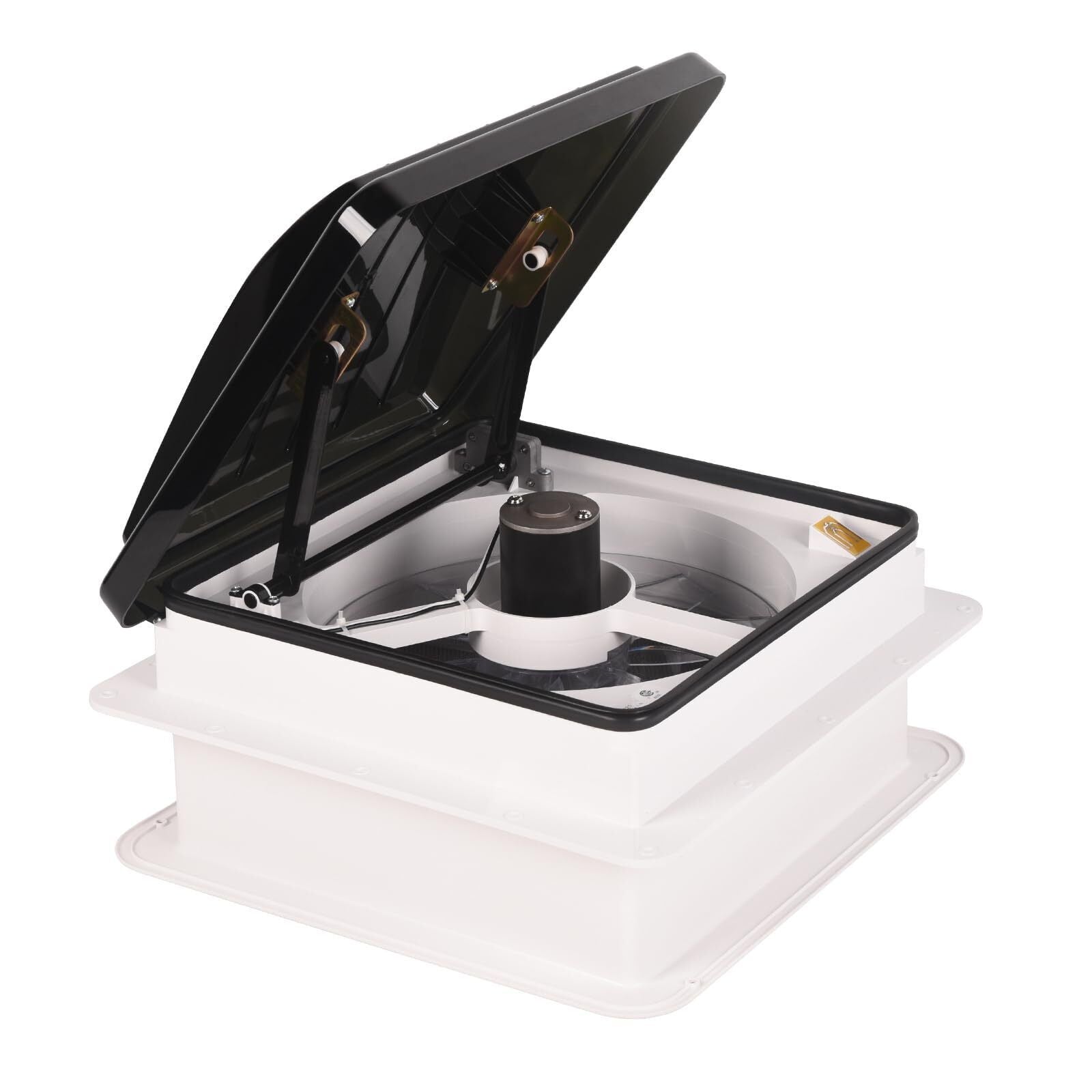

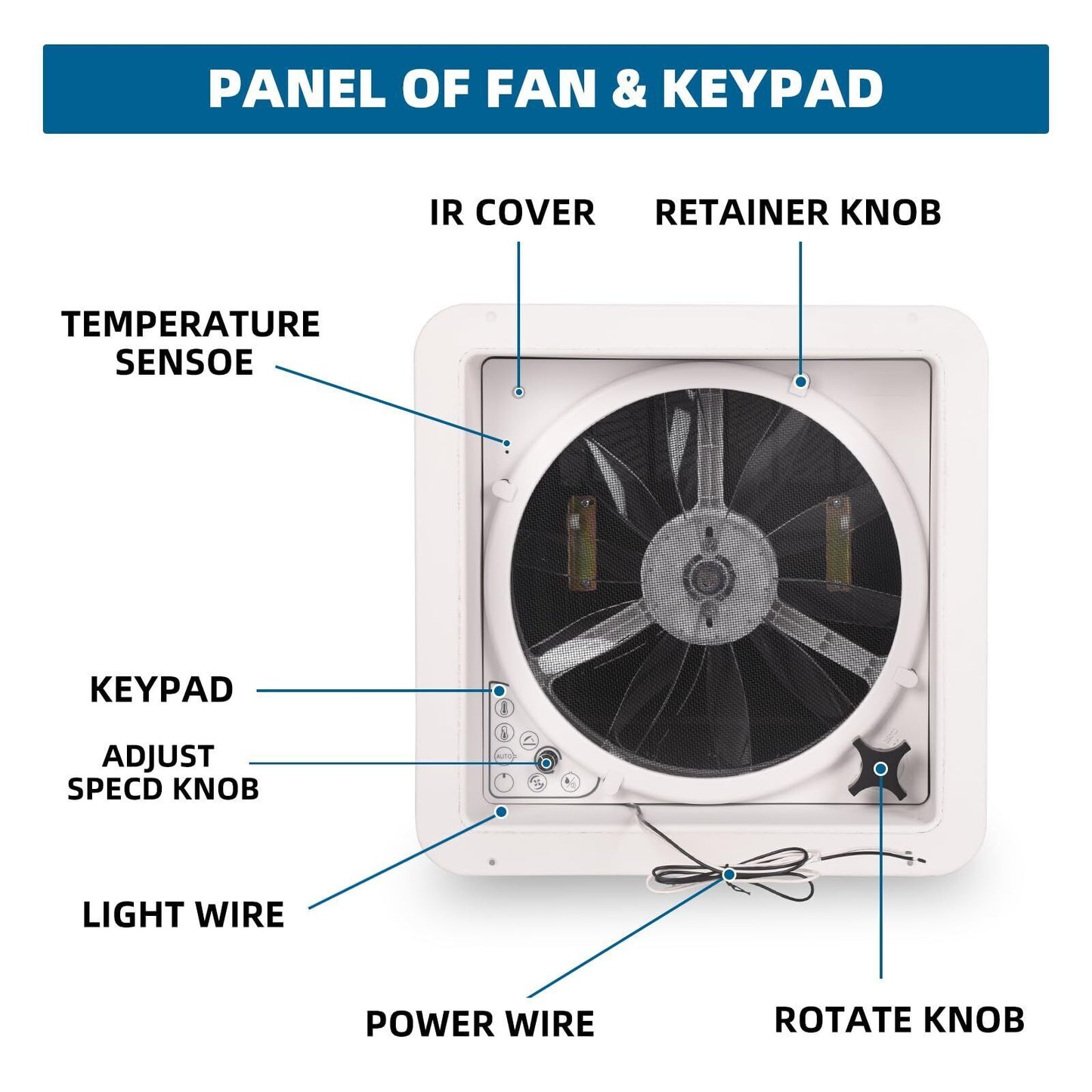

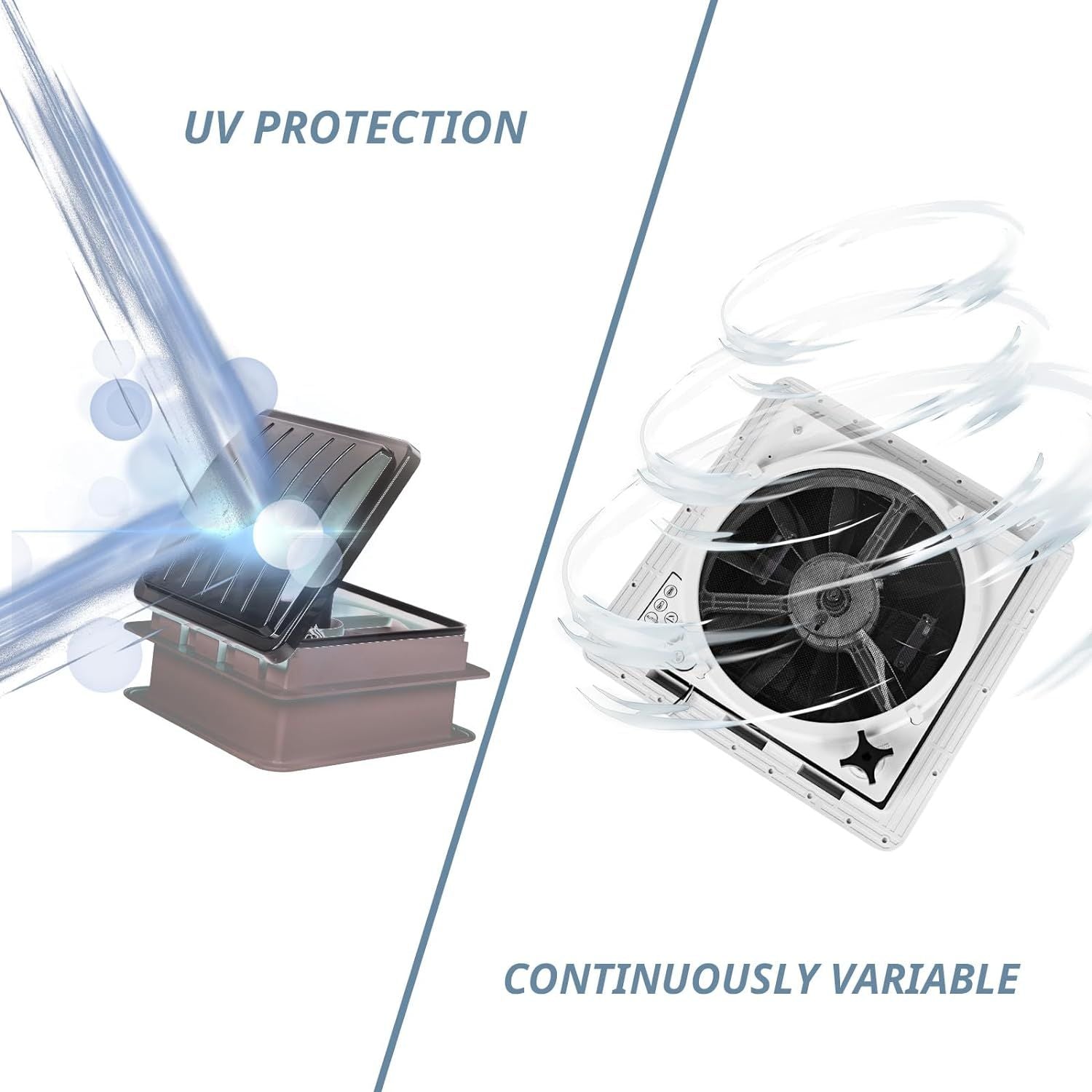

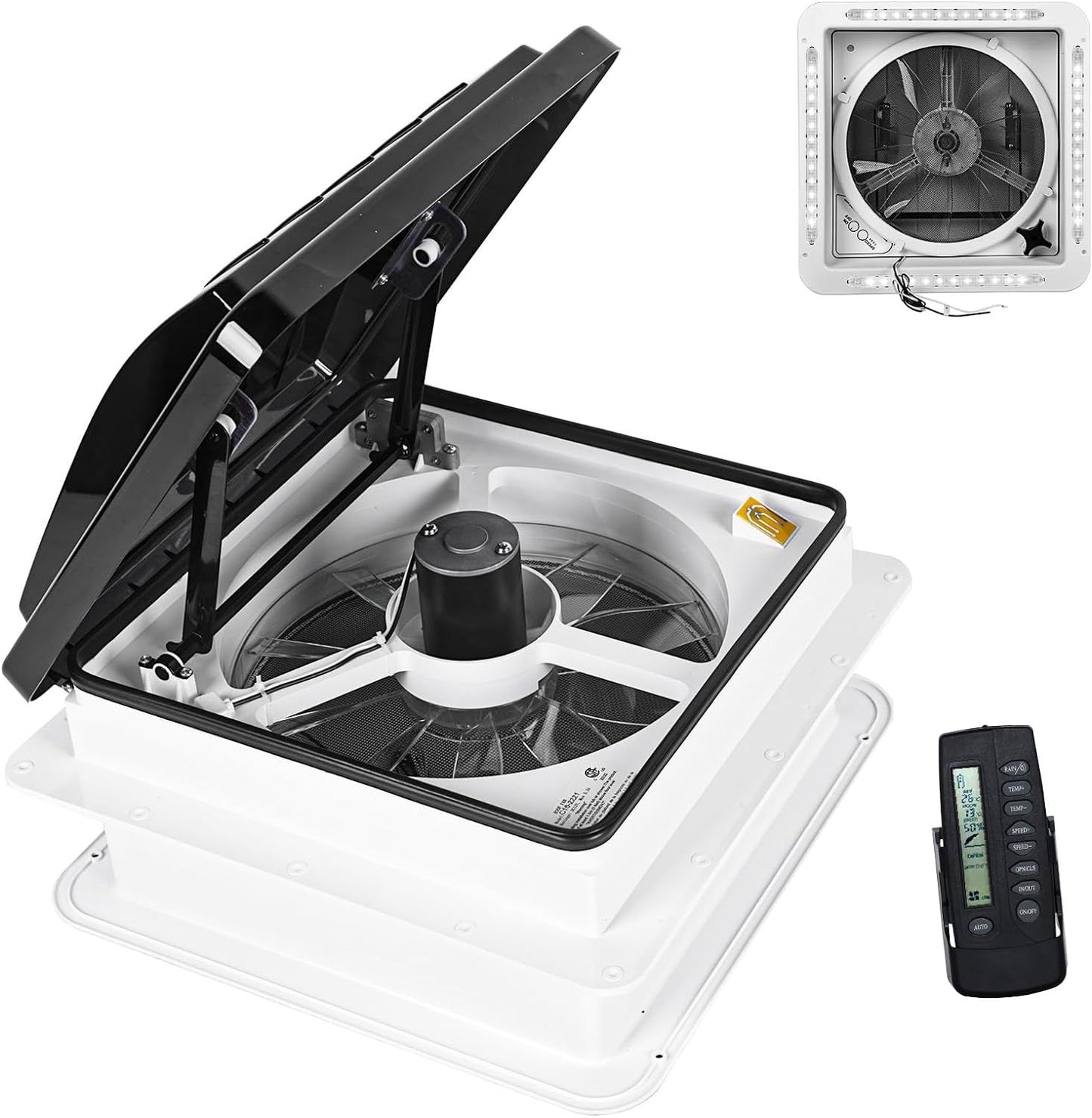

[๐๐๐๐๐๐๐๐๐๐๐๐ ๐๐๐๐๐๐๐๐ ๐๐๐๐๐๐๐๐๐๐]The rv ceiling fan has continuously variable adjustable with 1000 CFM in both air-in and air-out mode,you can simply operate it by the button or the remote control.This RV exhaust fan allows you to keep your RV cool providing comfort when traveling in hot weather.

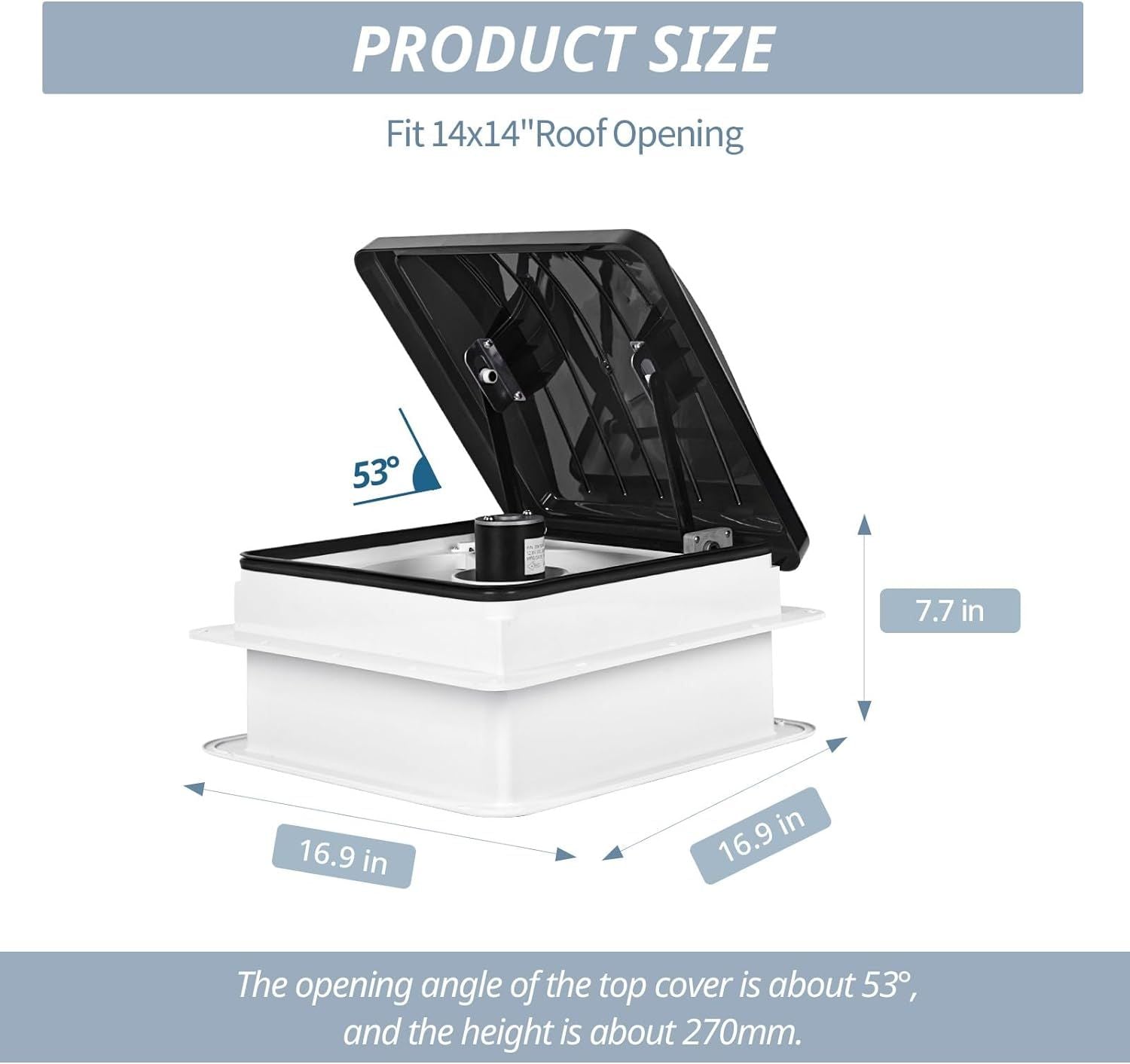

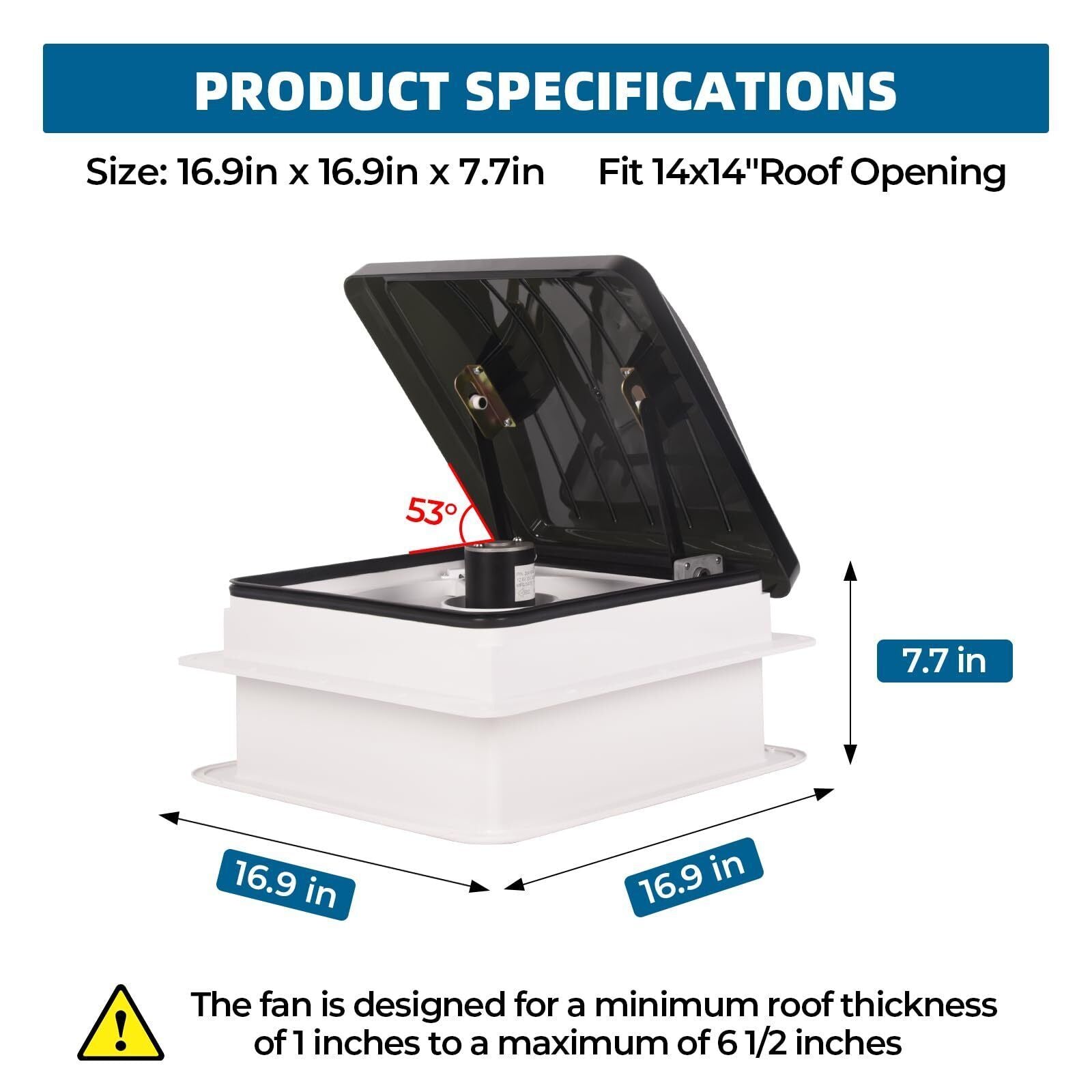

[๐๐๐๐ ๐๐ ๐๐๐๐๐๐๐]The rv vent fan fits all 14" x 14" roof openings.The fan is designed for a minimum roof thickness of 1 inches to a maximum of 6 1/2 inches.If your roof thickness is less than 1 inches, build additional thickness at the ceiling opening using wood or other suitable material.
[๐๐๐๐๐ ๐๐๐๐๐]12V DC motor,ultra quiet work,below 70 decibels,effective ventilation above 60Pa,the trailer vent fan provides quiet and comfortable indoor space, and conforming to the requirements of environmental protection.

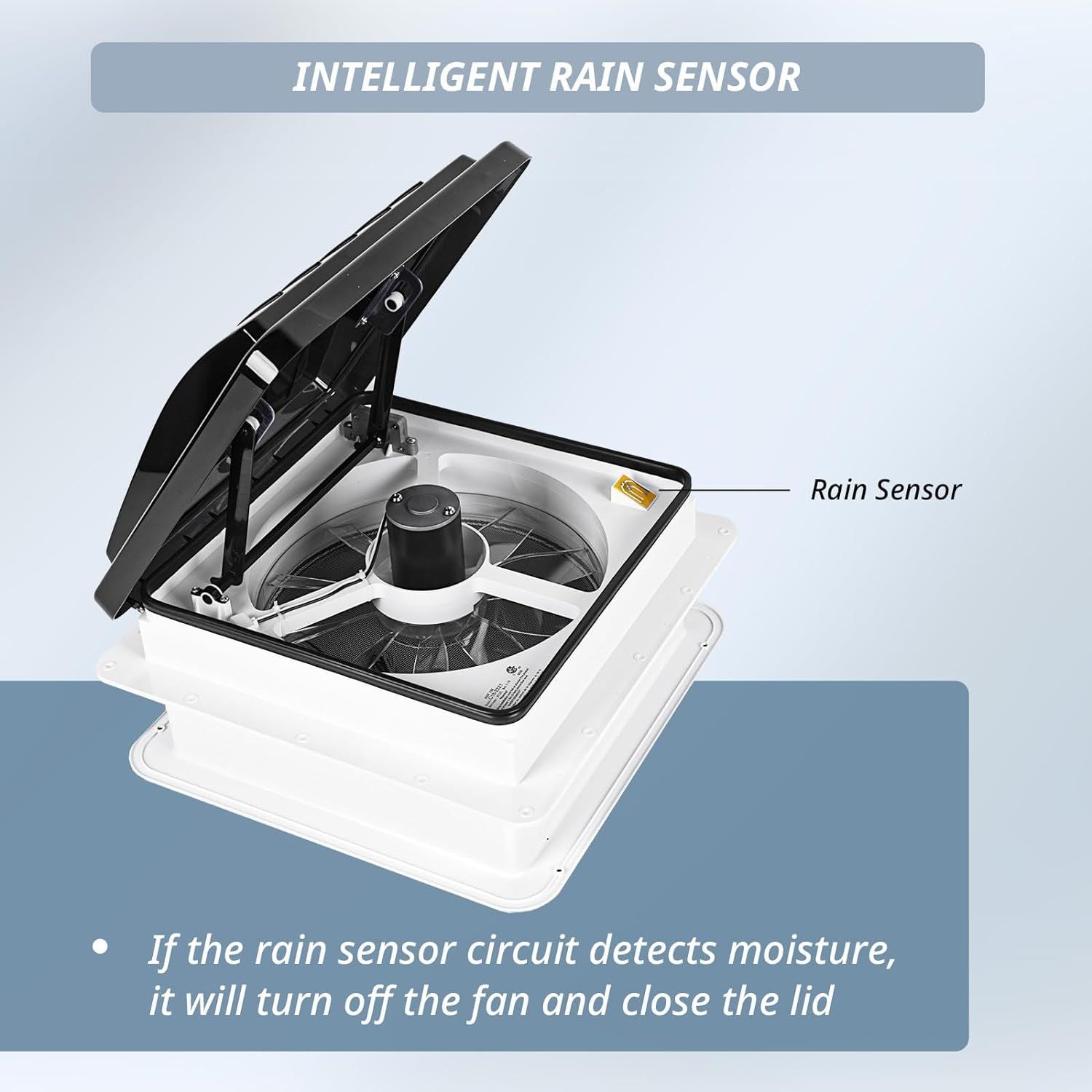

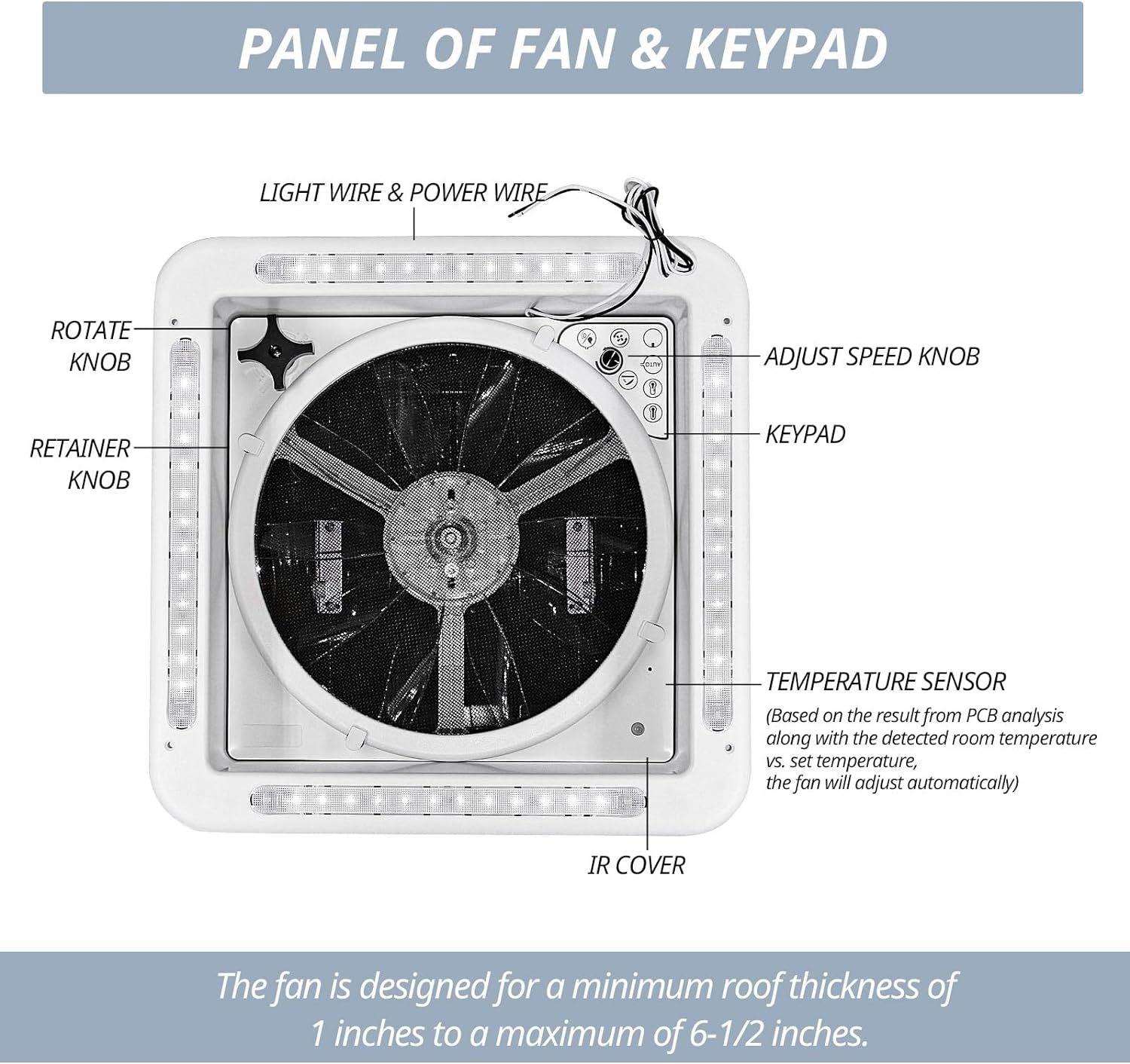

[๐๐๐๐๐๐๐๐๐๐๐ ๐๐๐๐ ๐๐๐๐๐๐ ๐๐๐ ๐๐๐๐๐๐๐๐๐๐]If the rain sensor circuit detects moisture, it will turn off the fan and close the lid, without accumulating water and prevent rain leaking,if any key is pressed when the rain sensor is still wet, the fan will beep three times, Press and hold this button for 3s to restart the fan after the rain sensor has dried(Automatic Models only).Based on the result from PCB analysis along with the detected room temperature vs. set temperature, the fan will adjust automatically.

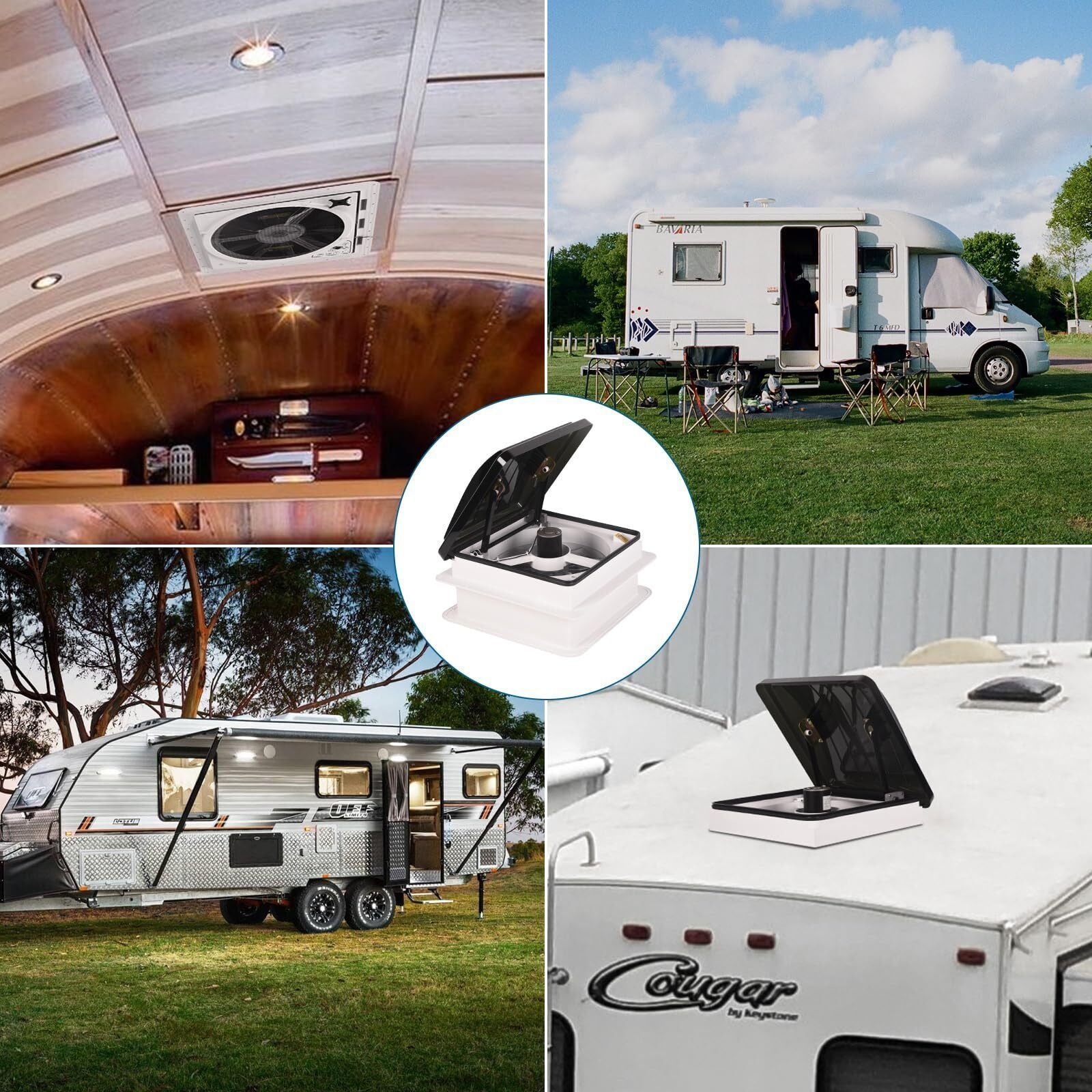

[๐๐๐๐๐๐๐๐ ๐๐๐๐๐๐๐๐๐๐๐๐]The rv exhaust fan keeps your camper fresh and bright with transparent fan blades that bring sunlight in.It can be used for bathroom,living room,bedroom,kitchen in RV,camper,travel trailer.
ย
INSTALLATION STEPS:
Step1: please remove the old existing roof vent and all old roof sealant for a minimum of 2"entirely around the roof opening.
Step2: Prior to installing the fan into the roof opening,apply a continuous strip of BUTYL tape or equivalent to the underside of the flange,making sure to cover the screw holes.
Step3: Using the insulated 16 gauge electrical connectors provided, connect the vehicle's 12volt power to the two fan power wires located on the driver side of the fan.
Step4: Insert the fan into the opening with the lid hinge facing the front of the vehicle and centering the fan in the opening. Make sure the power wires
slide to the interior and do not become entangled.
Step5: After the fan has been installed, remove the excess BUTYL caulk that may have squeezed out. Using a sealer apply a daub over every exposed screw head.
Step6: The interior Garnish Trim Ring must be trimmed to fit your particular RV roof thickness.
Step7: Complete the installation by placing any excess wiring to the inside of the roof opening and sliding the Garnish Ring into position.
ย
| Fan Blade: |
10 |
| CFM: |
1000 |
| Power: |
30W |
| Voltage: |
DC 9-16V |
| Speeds: |
continuously variable |
| Mounting Type: |
Ceiling Mount |
| Noise: |
below 70dB |
| Lid Opening: |
Auto + Manual |
| Control: |
Remote and Manual |
| Install roof thickness: |
1 inch to 6-1/2 inch. |
Package Include:
1x RV Roof Vent
1 x Remote Control
Some screw parts,
1 x Instruction
ย
ย
With light
[๐๐๐๐๐๐๐๐๐๐๐๐ ๐๐๐๐๐๐๐๐ ๐๐๐๐๐๐๐๐๐๐]The rv vent fan has continuously variable adjustable with 1000 CFM in both air-in and air-out mode,you can simply operate it by the button or the remote control.This RV exhaust fan allows you to keep your RV cool providing comfort when traveling in hot weather.
[๐๐๐๐ ๐๐ ๐๐๐๐๐๐๐]The rv ceiling fan fits all 14" x 14" roof openings.The fan is designed for a minimum roof thickness of 1 inches to a maximum of 6 1/2 inches.If your roof thickness is less than 1 inches, build additional thickness at the ceiling opening using wood or other suitable material.

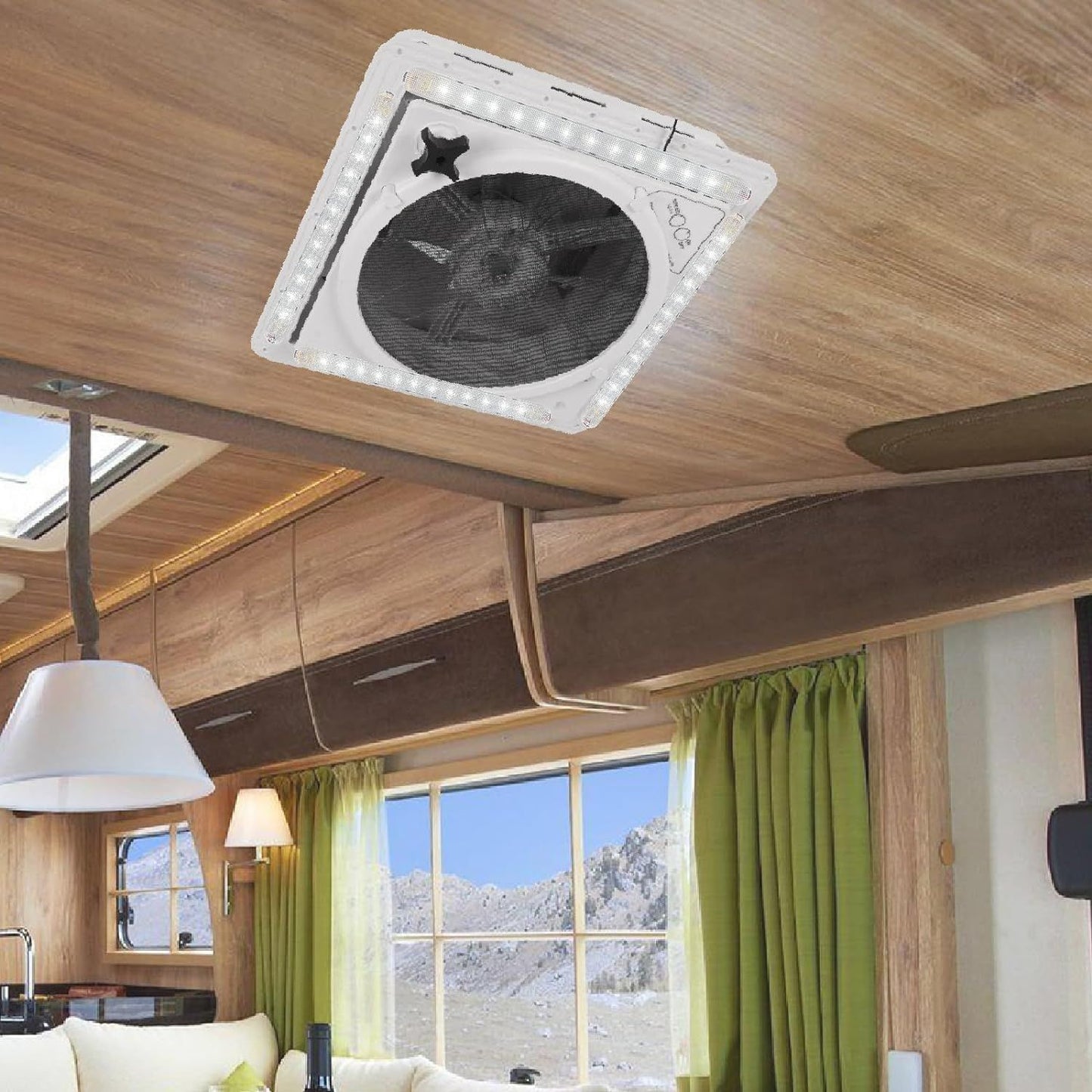

[๐๐๐๐๐ ๐๐๐๐๐ & ๐๐๐ ๐๐๐๐๐]12V DC motor,ultra quiet work,below 70 decibels,effective ventilation above 60Pa,the trailer vent fan provides quiet and comfortable indoor space, and conforming to the requirements of environmental protection.With LED light, easy to operate at night and save energy, and can be used as a decorative light to create an atmosphere.
[๐๐๐๐๐๐๐๐๐๐๐ ๐๐๐๐ ๐๐๐๐๐๐ ๐๐๐ ๐๐๐๐๐๐๐๐๐๐]If the rain sensor circuit detects moisture, it will turn off the fan and close the lid, without accumulating water and prevent rain leaking,if any key is pressed when the rain sensor is still wet, the fan will beep three times, Press and hold this button for 3s to restart the fan after the rain sensor has dried(Automatic Models only).Based on the result from PCB analysis along with the detected room temperature vs. set temperature, the fan will adjust automatically.
[๐๐๐๐๐๐๐๐ ๐๐๐๐๐๐๐๐๐๐๐๐]The rv exhaust fan keeps your camper fresh and bright with transparent fan blades that bring sunlight in.It can be used for bathroom,living room,bedroom,kitchen in RV, camper,travel trailer.
| Fan Blade: |
10 |
| CFM: |
1000 |
| Power: |
30W |
| Voltage: |
DC 9-16V |
| Speeds: |
continuously variable |
| Mounting Type: |
Ceiling Mount |
| Noise: |
below 70dB |
| Lid Opening: |
Auto + Manual |
| Control: |
Remote and Manual |
| Install roof thickness: |
1 inch to 6-1/2 inch. |
INSTALLATION STEPS:
Step1: please remove the old existing roof vent and all old roof sealant for a minimum of 2"entirely around the roof opening.
Step2: Prior to installing the fan into the roof opening,apply a continuous strip of BUTYL tape or equivalent to the underside of the flange,making sure to cover the screw holes.
Step3: Using the insulated 16 gauge electrical connectors provided, connect the vehicle's 12volt power to the two fan power wires located on the driver side of the fan.
Step4: Insert the fan into the opening with the lid hinge facing the front of the vehicle and centering the fan in the opening. Make sure the power wires
slide to the interior and do not become entangled.
Step5: After the fan has been installed, remove the excess BUTYL caulk that may have squeezed out. Using a sealer apply a daub over every exposed screw head.
Step6: The interior Garnish Trim Ring must be trimmed to fit your particular RV roof thickness.
Step7: Complete the installation by placing any excess wiring to the inside of the roof opening and sliding the Garnish Ring into position.
Package Include:
1x RV Roof Vent with Light
1 x Remote Control
Some screw parts
1 x Instruction
